24/7 self service water
Customers activate and close their water supply without staff present. The number of outlets and permitted simultaneous use are confirmed for the selected unit.
Green Harbor Technology · Supply pedestals
WaterStation
Metered water dispensing, available around the clock.
A dedicated water point that customers operate by phone call, RFID card or the Emiko Customer App. Metered consumption supports customer records and billing, with cabinet and buried well formats for different harbor layouts.
- 24/7 self-service water
- Customer consumption records
- Cabinet or well
- SMS receipt
- Emiko connected
Green Harbor Technology
Explore this division
- DN80 outlets per buried well, depending on model
- 1 to 3
- Sensus flow meter on cabinet models; TIN pulse or M-Bus options
- MID
- TIN cabinet external range; pipework frost protection planned separately
- -20 to 50 °C
- self service water access without staff present
- 24/7
Key features
Key features of the WaterStation water supply
A complete system: flow meter, valve, electrical panel and control box, reporting to the Emiko platform.
MID approved flow meter
Cabinet models use a Sensus MID-approved flow meter. The TIN cabinet specification includes class R160 or R315 with pulse output or M-Bus, according to configuration.
Phone, RFID or app
Open the water with a phone call, an RFID or aKey card, or the Emiko Customer App. When the water is closed the customer receives an SMS with the consumed volume.
Billing without meter reading
Consumption is registered electronically in the Emiko platform, so the operator retrieves settlement data and invoices directly, and a customer PO number can be attached.
Automatic fault reporting
The system constantly monitors its own operating status and alerts Vikingegaarden's technical staff directly if an irregular situation occurs.
Heated TIN cabinet
The TIN cabinet has a thermostatically controlled internal heater and a documented external operating range from -20 to 50 °C. Pipework and hydrant frost protection are planned for the site.
Hot dip galvanised cabinet
TIN cabinets are hot dip galvanised steel, corrosion category C5-M for marine sites, with a square key lock, lifting eyes and PN10 rating.
Cabinet or buried well
Choose a cabinet beside the service equipment or a buried well with a cover, riser and control box at ground level. The water, electrical and civil connections are planned for the location.
How it works
How WaterStation works for the customer and the operator
Connect, press, authenticate, fill, close: the whole visit is self service and every litre lands in the Emiko platform.
WaterStation is a complete system for managing water supply at docks and marinas: a flow meter, a normally closed valve, an electrical panel and a small stainless steel control box with two push buttons and a status lamp (yellow while opening or closing, green when ready, red on fault or busy). For the documented TIN cabinet valve, opening takes about 10 seconds and closing about 20.
Where a requisition number is required, the OrdreManager workflow lets the customer text back a reference or PO number that is attached to that consumption record, so the invoice carries the customer's own cost code.
Connect the hose, open the tap and press the top button on the control box
Authenticate with an RFID or aKey card, by calling the number printed on the unit, or in the Emiko Customer App
The valve opens once approved and the flow meter records consumption
Press the bottom button to close, disconnect, and receive an SMS with the volume used
Consumption, status and fault alerts are handled centrally in the Emiko platform for billing
Models
WaterStation models: cabinet or buried well
Select the format around hose access, traffic loading and the water and power connections available at the site.
WaterStation cabinet (TIN and MBO series)
TIN and MBO cabinet formats mount on a wall or next to a ServicePedestal and draw power from the connected pedestal. Detailed specifications below apply to the stated series.
- DN65 or DN80 water inlet
- Storz B coupling outlet, 2 1/2 or 3 inch
- Sensus MID-approved flow meter; TIN cabinet with thermostatic heater

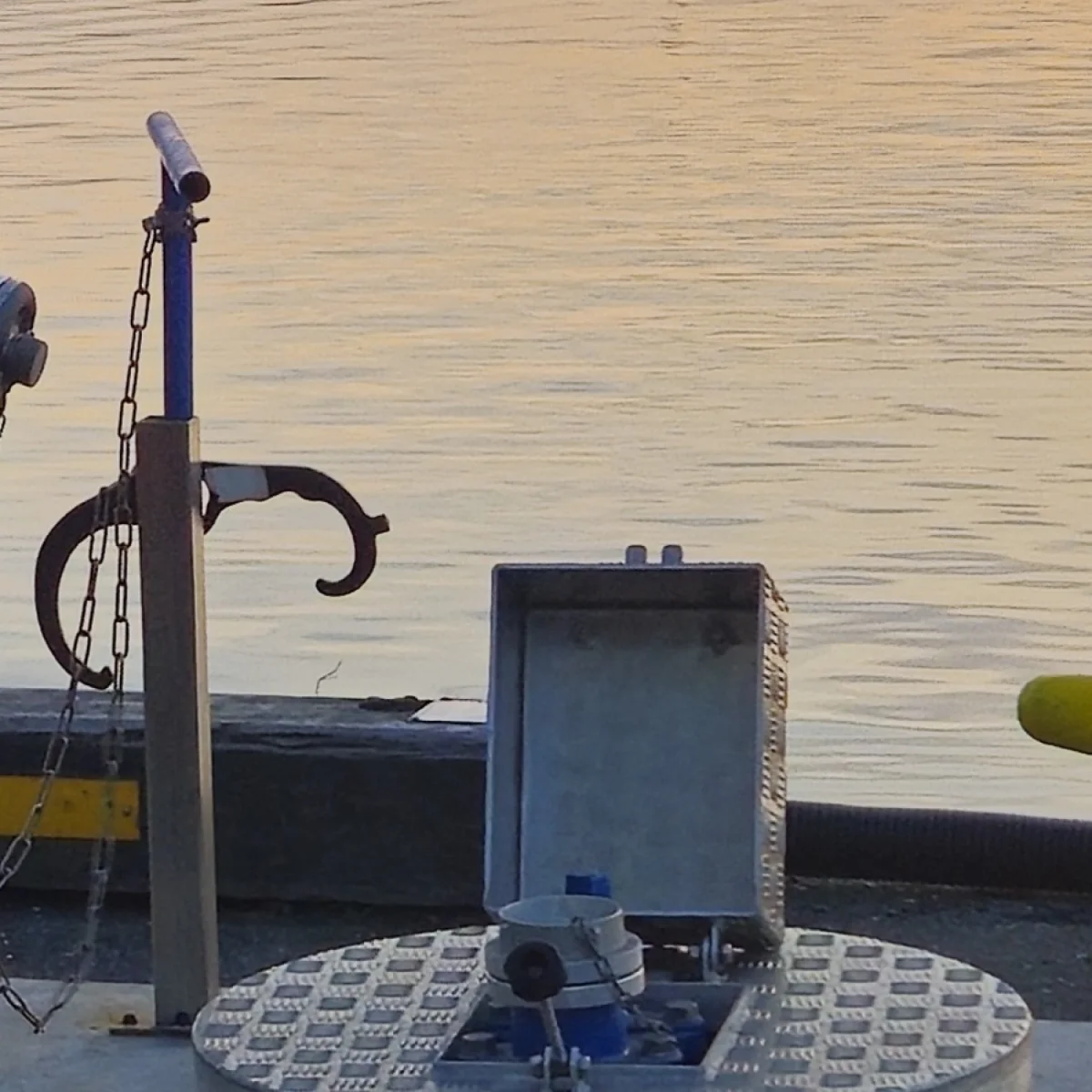

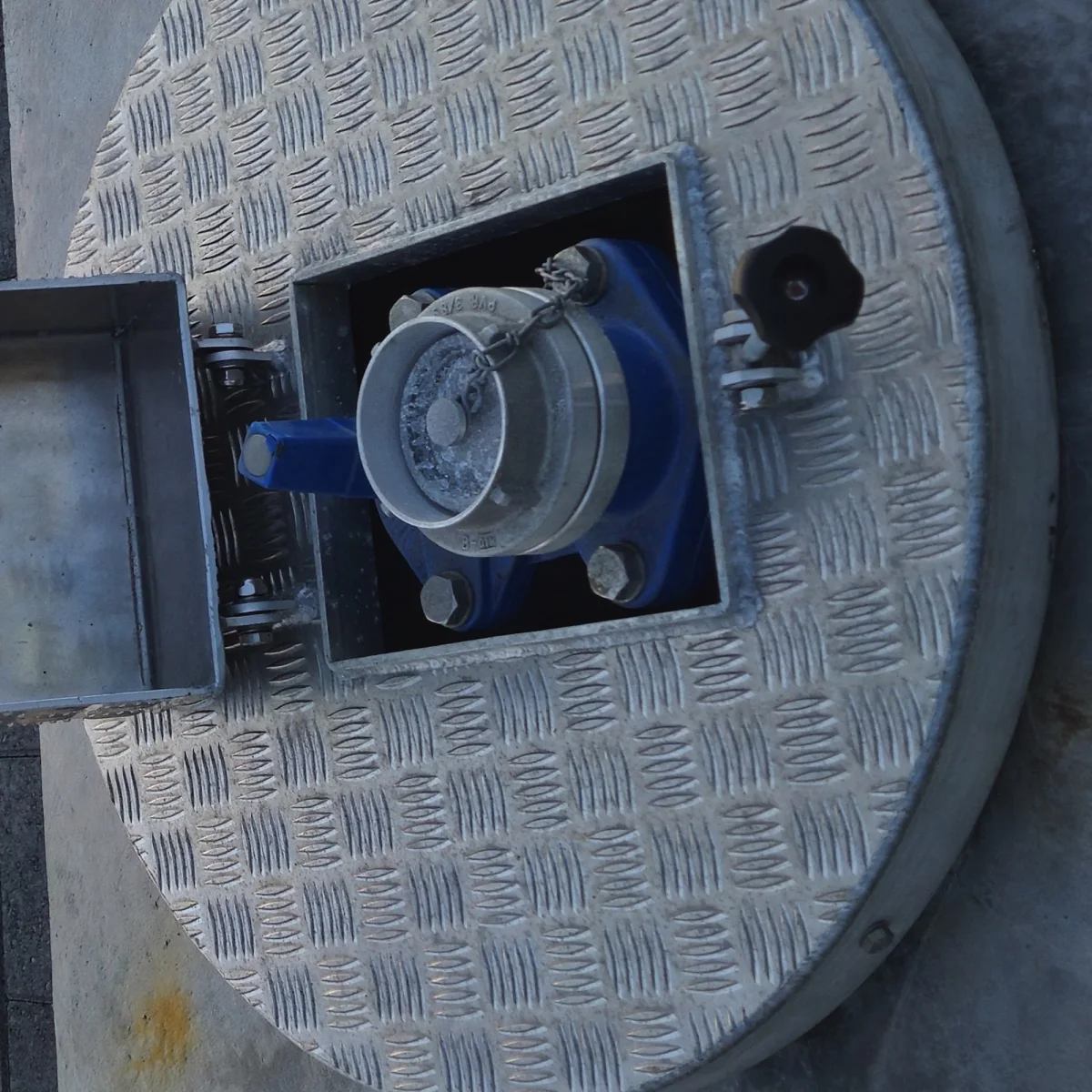

WaterStation well (TIN series)
A buried well with the cover, riser and control box at ground level. The power arrangement and permitted simultaneous outlet use are confirmed for the selected model.
- DN32 up to DN100 inlet
- 1 to 3 DN80 outlets per well
- Cover for pedestrian areas or reinforced for heavy vehicle traffic
Ecosystem
WaterStation on the Emiko platform
The same phone or RFID credential a customer uses on other Emiko connected equipment at the site also opens the water.
Water usage is automatically tracked and recorded in the Emiko platform, making it easy to monitor consumption for billing and documentation. Operators retrieve settlement data and invoice directly, and invoicing can be automated through the Oeconomia API. Cabinet models are installed with a ServicePedestal and draw power from it, so electricity and water at the waterfront are managed in one system.
- Consumption recorded automatically in the Emiko platform, no manual meter reading
- Control through the Emiko Customer App, phone call or RFID
- Requisition numbers attached to consumption records with OrdreManager
- Automatic fault alerts to Vikingegaarden's technical staff
Technical details
WaterStation models: cabinet or buried well
TIN cabinet specifications apply to that series. The documented galvanising specification includes a coating of at least 93 microns and corrosion categories C5-M or C4; service-life assumptions are confirmed for the project and do not state a warranty for the whole installation. TIN cabinets are PN10, with a square key lock, two lifting eyes and optional TBS overflow valve. Well models can be fitted with frost proof or buried hydrants. Confirm the well power arrangement and simultaneous outlet operation for the selected model.
Ask about a specification| Spec | Cabinet (TIN, MBO) | Well (TIN) |
|---|---|---|
| Installation | Wall mounted or next to a ServicePedestal | Buried, cover and riser at ground level |
| Power | Drawn from the connected ServicePedestal | Power arrangement confirmed for the selected well |
| Water inlet | DN65 or DN80 | DN32 up to DN100 |
| Outlets | Storz B 2 1/2 or 3 inch | 1 to 3 DN80 outlets |
| External dimensions | 1450 x 1200 x 750 mm (TIN) | On request |
| Cover options | Not applicable | Pedestrian or reinforced for heavy traffic |
Product guide
WaterStation: self service water supply for docks, marinas and ports
WaterStation turns a hose point on the pier into a metered, self service water supply that customers open themselves and operators bill from the Emiko platform, without a single manual meter reading.
Who WaterStation is for
WaterStation is built for sites that hand out fresh water to changing customers: fishing harbors filling trawlers before departure, marinas serving guest boats, and ports where visiting vessels need water at odd hours. It is the water only member of Vikingegaarden's supply pedestal range, the right choice where power is already covered.
Because the whole visit is self service, the water point works around the clock without staff present. The customer connects a hose, authenticates and fills; the operator sees every litre in the Emiko platform. The permitted simultaneous use of outlets is confirmed for the selected unit.
Choosing a cabinet or buried well
Cabinet models in the TIN and MBO series mount on a wall or beside a ServicePedestal and draw power from the connected pedestal. They have DN65 or DN80 water inlets, Storz B coupling outlets and a Sensus MID-approved flow meter. Detailed TIN cabinet specifications should not be assumed for every MBO model.
TIN wells provide a buried format for locations where surface access and traffic matter. Models have DN32 to DN100 inlets and 1 to 3 DN80 outlets, with cover variants for pedestrian areas or heavier traffic. The power arrangement and permitted simultaneous hose use are confirmed for the selected well.
Installation and winter operation
The location determines the water connection, electrical supply, drainage and civil work. Cabinet mounting and well cover loading are specified for the surrounding harbor operations.
The TIN cabinet has hot dip galvanised steel construction, a thermostatically controlled heater and a documented external operating range from -20 to 50 °C. Frost protection for exposed pipework and the selected hydrant is assessed separately for the site.
Daily operation on the Emiko platform
The customer journey is short: connect the hose, press the top button on the stainless control box, authenticate with an RFID or aKey card, a phone call to the number printed on the unit, or the Emiko Customer App. The documented TIN cabinet valve opens in about 10 seconds, the flow meter records consumption, and when the customer presses the bottom button to close, an SMS arrives with the volume used. A status lamp shows yellow while opening or closing, green when ready and red on fault.
For the operator, harbor water metering happens entirely in the Emiko platform: settlement data is retrieved and invoiced directly, invoicing can be automated through the Oeconomia API, and the OrdreManager workflow lets a customer text back a PO number that lands on the invoice. The system also monitors its own operating status and alerts Vikingegaarden's technical staff directly when something is irregular.
Water dispensing within the harbor service plan
WaterStation adds customer activation and consumption records to a dedicated water point. This is useful where electricity is already provided separately or where the water installation requires a cabinet or buried well.

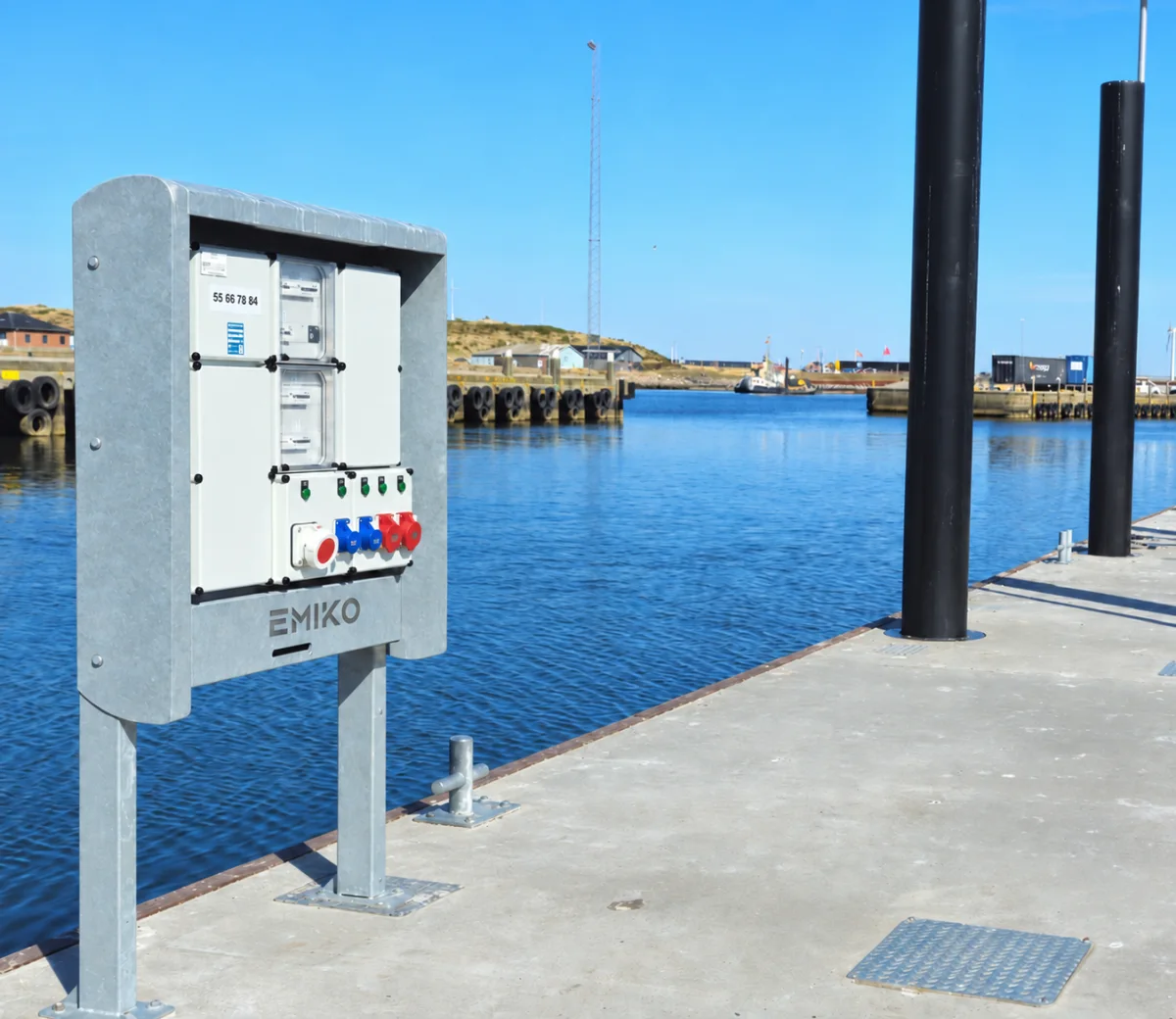

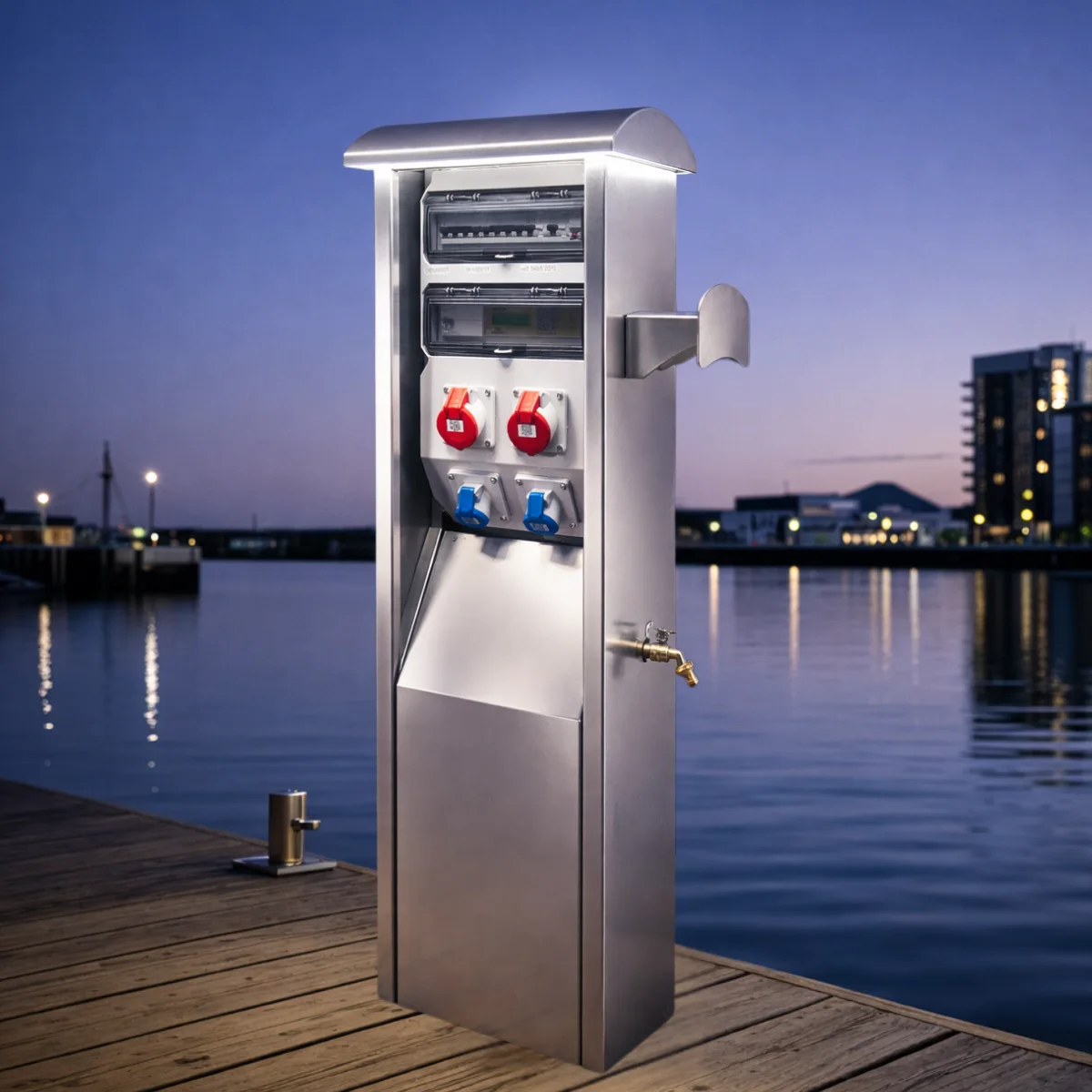

For combined electricity and water at a compact service stand, compare Marineium. For marina pedestals with optional water, compare Marinella NEO. These connected services use the Emiko platform for customer administration.

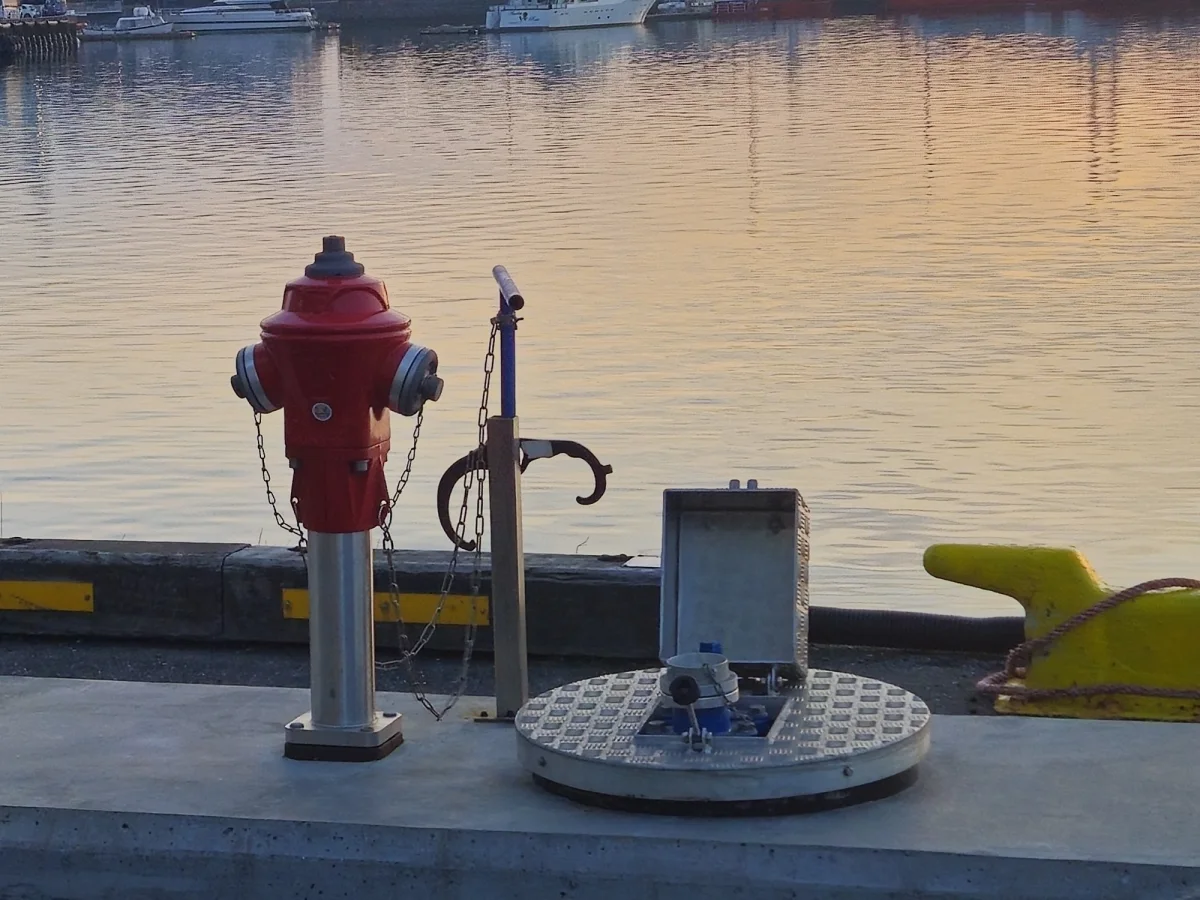

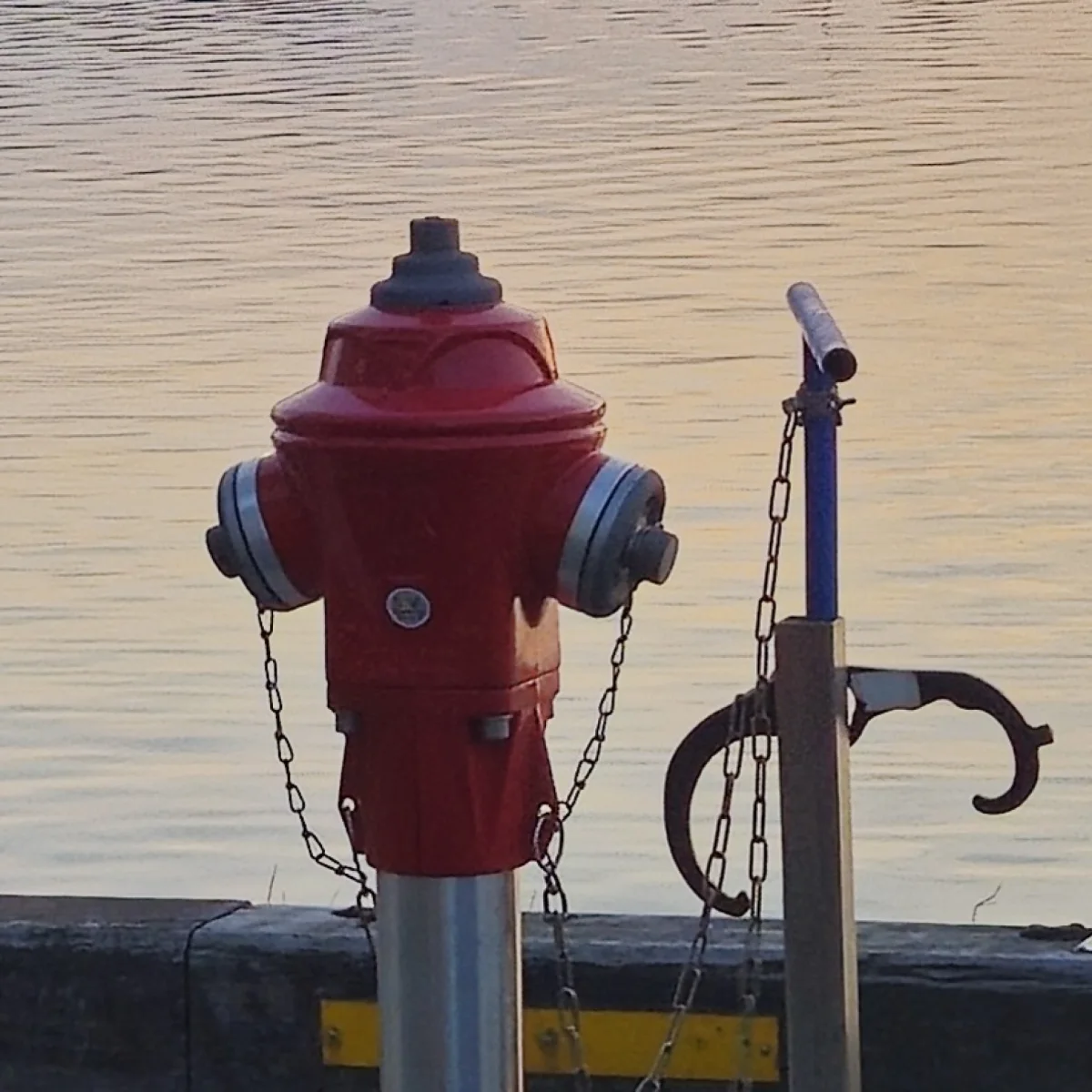

Gallery
Explore WaterStation
Illustrative views of the product and its waterfront setting.
Good to know
Frequently asked questions about WaterStation
What is WaterStation?
WaterStation is Vikingegaarden's self service water dispensing point for docks, marinas and ports. It meters consumption with a MID approved flow meter, lets customers open the water 24/7 by phone, RFID card or the Emiko Customer App, and records everything in the Emiko platform for billing.
How does a customer start and stop a filling?
Connect the hose, open the tap and press the top button on the control box. Authenticate with a phone call, RFID or aKey card, or the Emiko Customer App. Press the bottom button to close; an SMS then records the volume used.
Where can WaterStation be installed?
WaterStation models are used outdoors, either as a galvanised cabinet mounted on a wall or next to a ServicePedestal, or as a waterproof well that is buried with only the cover, riser and control box visible at ground level.
Can several WaterStation outlets be used at once?
Well models offer different physical outlet counts. The permitted simultaneous use and allocation of consumption are confirmed for the selected model and control arrangement before ordering.
How is water consumption billed with WaterStation?
The MID approved flow meter registers consumption electronically, the customer receives an SMS with the volume when the water is closed, and the operator retrieves settlement data in the Emiko platform and invoices directly, without manual meter reading.
Can a customer attach a purchase order number to a filling?
Yes. With the OrdreManager workflow the customer calls in, receives an approval SMS and replies with the PO or reference number within a few minutes before the outlet activates. The number is attached to that consumption record and appears on the invoice.
How is WaterStation prepared for winter?
The TIN cabinet has a thermostatically controlled heater and a documented external operating range from -20 to 50 °C. The site plan must also address frost protection for connected pipework and hydrants. Frost proof and buried hydrant options are available.
When should I choose WaterStation instead of a power and water pedestal?
Choose WaterStation for a dedicated water dispensing point, especially where the project needs a cabinet or buried well. Marineium combines electricity and water in a harbor stand, while Marinella NEO provides marina power with optional water.
