Activate services by QR code
Boat owners scan the code on the selected outlet to open the Emiko Customer App and follow the configured activation and payment flow.
Green Harbor Technology · Supply pedestals

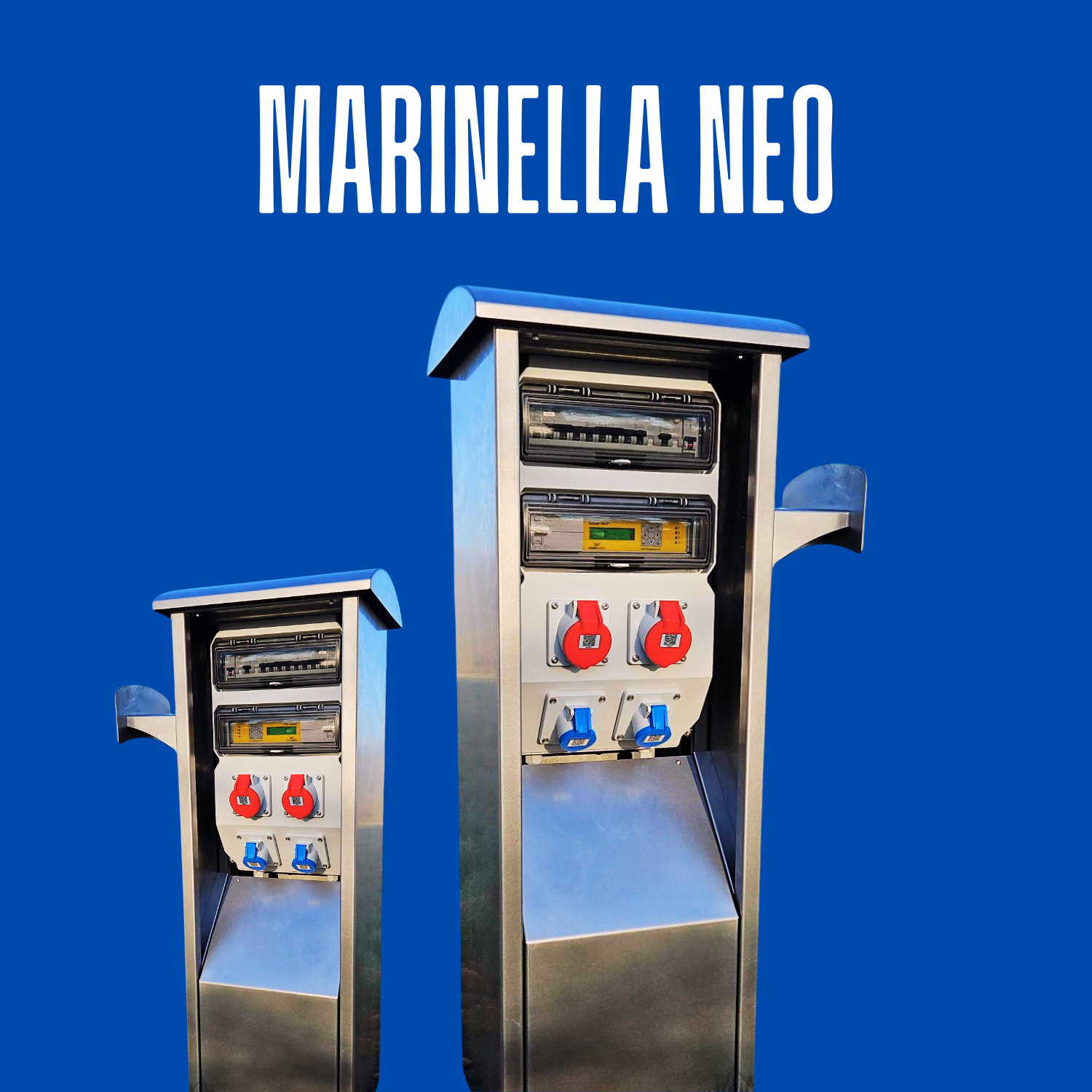

Marinella NEO
Smart power and water for your marina.
Self-service electricity and optional water for boat owners. Meter consumption, manage access and handle configured payments through the Emiko platform.
- MID electricity metering
- QR activation
- Emiko connected
Green Harbor Technology
Discover the series
- CEE power outlets, depending on the selected model
- 2 to 8
- documented CEE outlet options at 16 A, 32 A or 63 A
- 230 / 400 V
- optional Type 2 EV charging configurations
- 11 / 22 kW
- optional water tap on compatible models
- 1 x 1/2 in
Designed around daily use
Simple for boat owners. Connected for your team.
QR access at the outlet, clear consumption records and one platform to manage your connected service points.
Meter consumption at each outlet
Each controlled power outlet has a MID-approved electricity meter. Compatible water configurations also record consumption for reporting and billing.
Accept online payments
Offer card and MobilePay payments through the Emiko Customer App and your configured payment agreement. No payment terminal is required on the pedestal.
Connect directly to the Emiko platform
The pedestal connects directly to the Emiko platform over GSM. Operators can view status and consumption without an RF mesh between pedestals or a central site controller.
Switch off when a plug is removed
Plug detection switches the outlet off when the customer disconnects, helping prevent an outlet from remaining active after use.
Continue local operation
The local controller continues the configured service and stores consumption records during a connection interruption. Records synchronize when connectivity returns.
Marine grade construction
The freestanding pedestal is available in AISI 316 stainless steel, with SS304 and marine finishes documented as configuration options. Confirm the enclosure specification for the selected model.
Modular design
Outlet, water, lighting and control components are selected per installation. Service access and retrofit options allow individual components to be replaced without changing the complete pedestal.
For boat owners
How it works
From the QR code on the outlet to automatic switch-off when the boat owner disconnects.
Scan the QR code on the outlet
Activate your service
Follow the on-screen activation and payment instructions in the Emiko Customer App.
Use power and view consumption
Electricity use is recorded automatically and available in the app.
Unplug when finished
Removing the plug switches the outlet off automatically.
Connected through the Emiko platform
Your site. Your configuration.
Choose how Marinella NEO fits your site
Use a freestanding pedestal for a new service point, a WallBox where a wall or post is available, or an Installation Kit to upgrade compatible equipment.

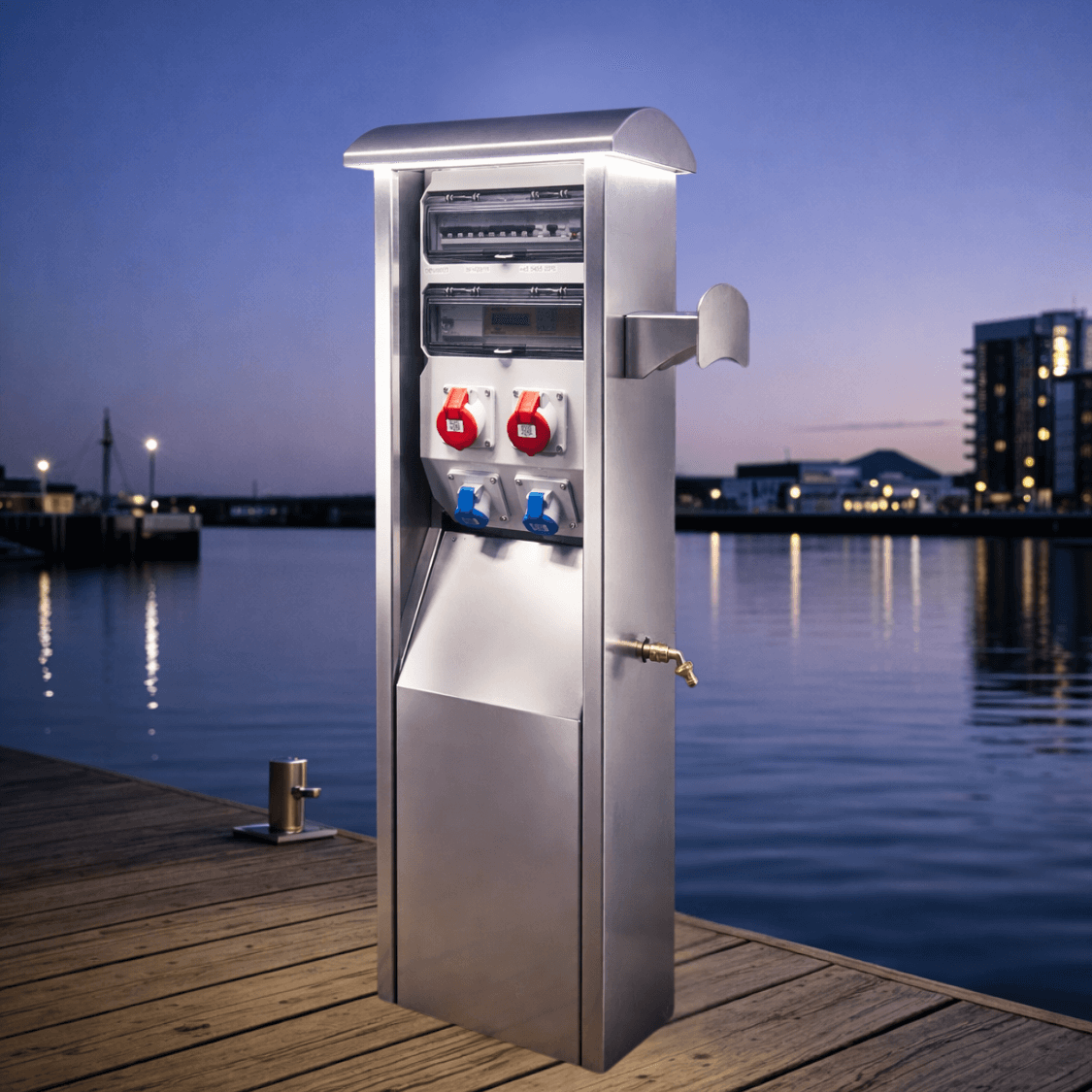

Marinella NEO Stand
Freestanding power and water pedestal for marina, campsite and service-area installations. Documented models provide 2 to 8 CEE outlets in 230 V and 400 V combinations.
- CEE 16 A, 32 A and 63 A configurations
- Optional 1/2 inch water tap and water metering
- Optional Type 2 EV charging at 11 kW or 22 kW

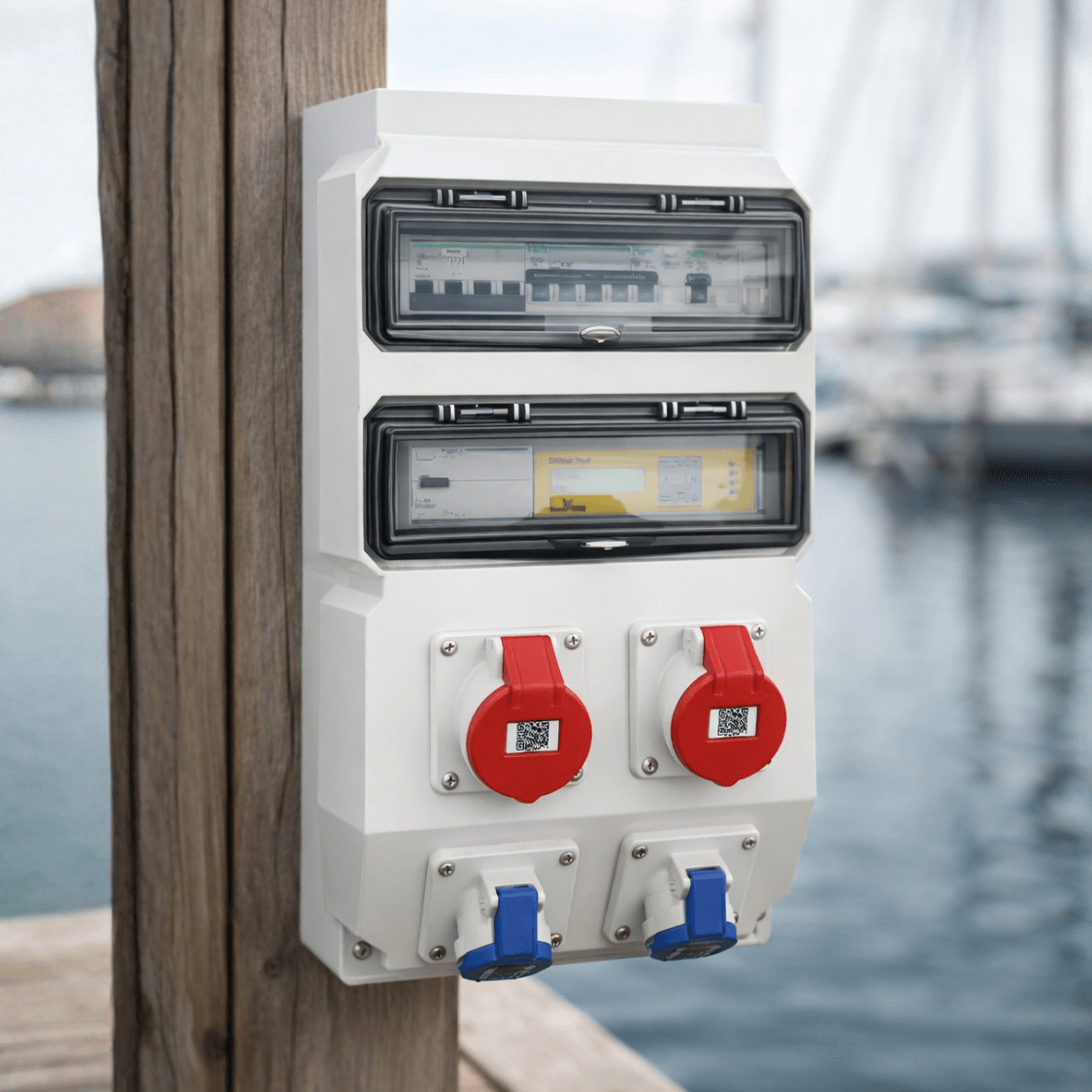

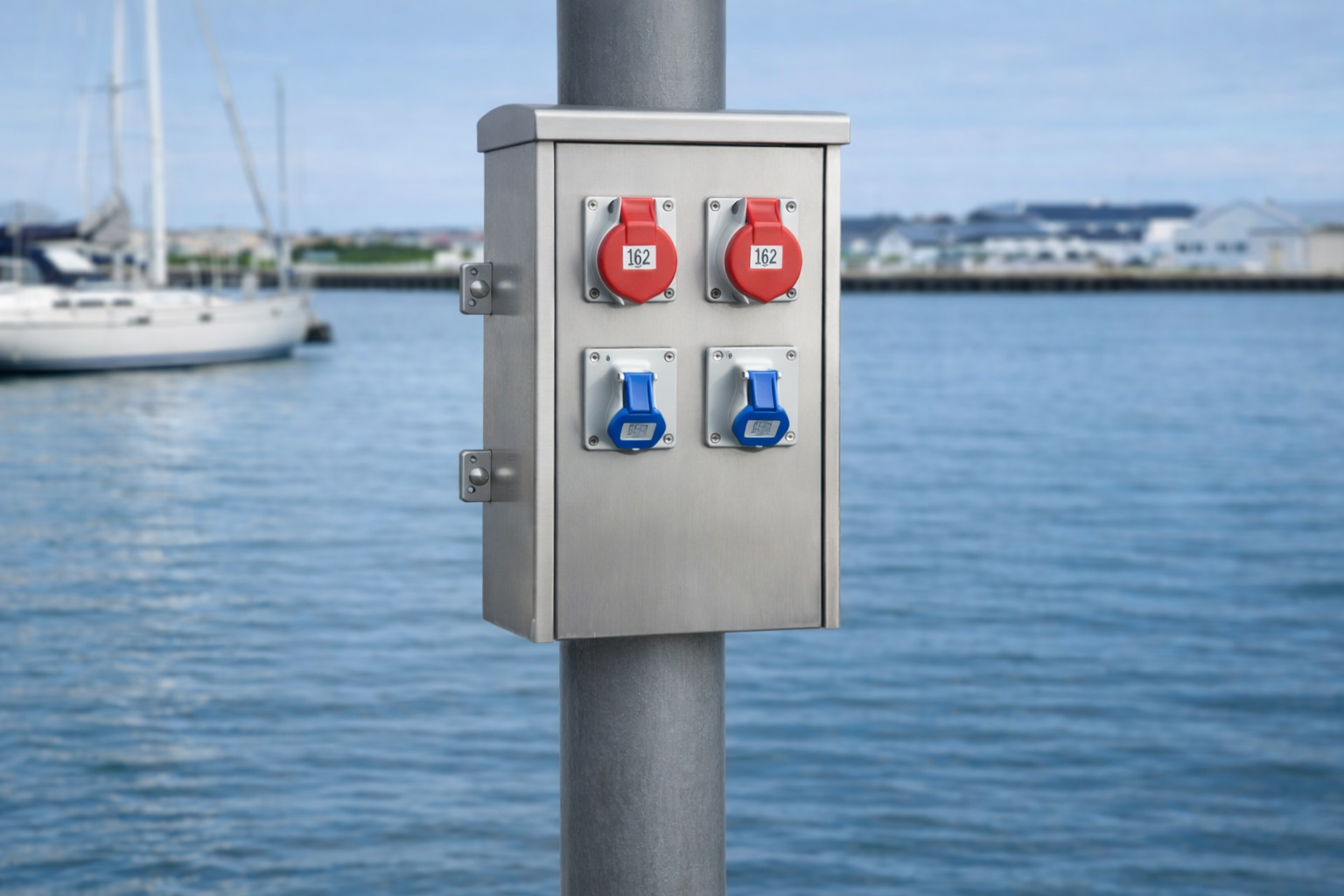

Marinella NEO WallBox
Wall or post-mounted enclosure using the Marinella control principle where a freestanding stainless steel pedestal is not required. Outlet options must be confirmed for the WallBox format.
- MID-approved electricity metering
- QR activation and Emiko connectivity
- Configuration confirmed for each project

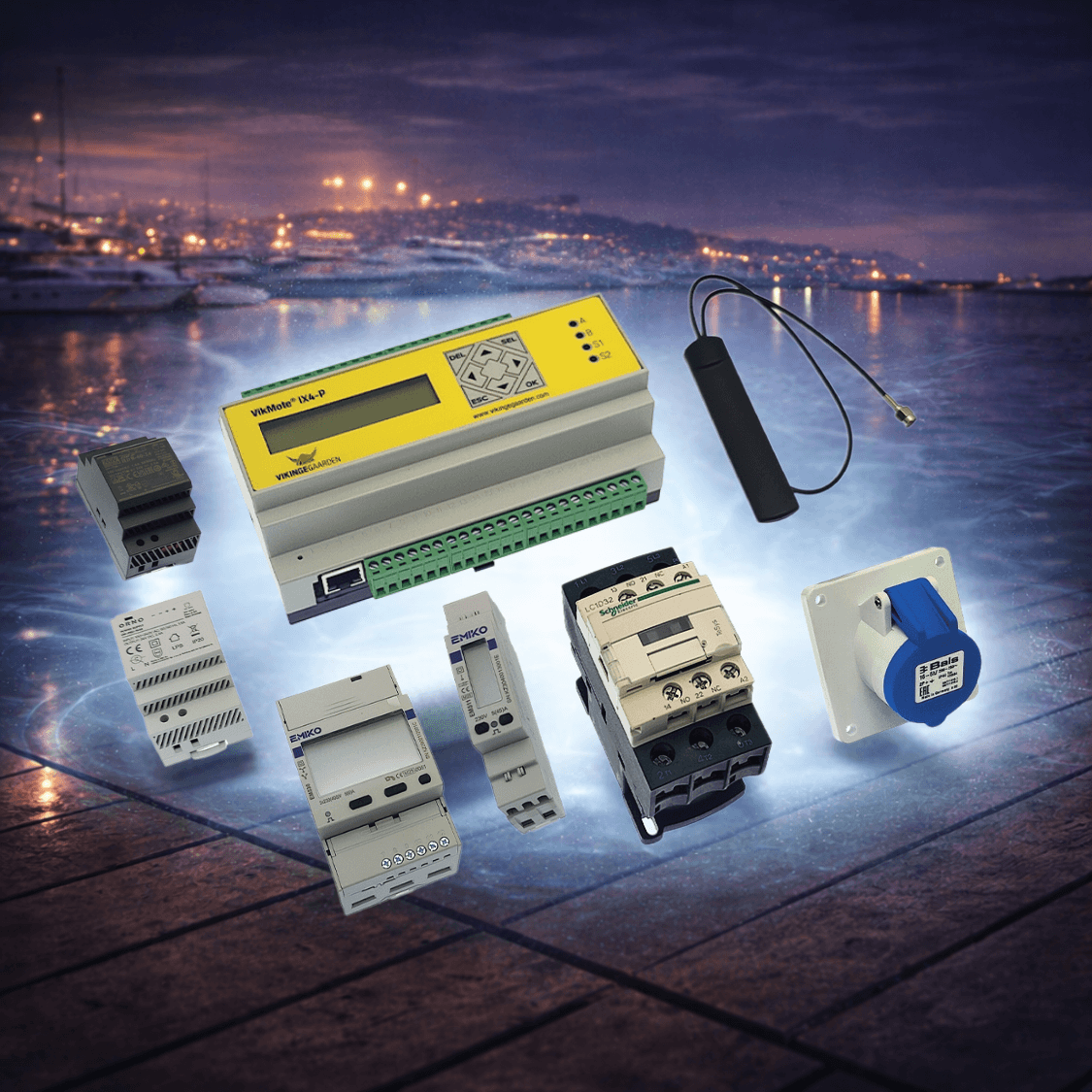

NEO Installation Kit
A retrofit component kit for a compatible existing pedestal, documented as Constructum. Add communication, controlled CEE outlets and MID-approved electricity metering while retaining suitable cabinet and protection components.
- GSM controller, SIM card, antenna and 24 VDC power supply
- Per outlet: meter, contactor and CEE socket with plug detection
- Existing protection, wiring and enclosure assessed before installation
Already have pedestals?
Keep a suitable cabinet. Upgrade the way it works.
An existing pedestal can remain useful even when its control and billing system needs an update.
The Constructum retrofit kit adds Emiko control to a compatible existing pedestal. The documented kit includes the controller, communication hardware and the metering and switching components required per controlled outlet. The enclosure, protection devices and wiring are assessed before reuse.
- Retain a suitable existing pedestal enclosure instead of replacing it automatically
- Add MID-approved electricity metering and controlled CEE outlets
- Connect the installation directly to the Emiko platform over GSM
- Add QR activation and the configured payment workflow
- Confirm electrical protection and wiring during the site assessment
Technical details
Specifications at a glance
Compare the published options, then confirm the combination for your chosen model.
Overall dimensions, weight, IP and IK ratings, exact water flow and price are not published as universal values. They must be confirmed for the quoted model.
Ask about a specification| Specification | Published options |
|---|---|
| Power outlets | 2 to 8, depending on model |
| CEE voltage | 230 V single phase and 400 V three phase |
| Current ratings | 16 A, 32 A and 63 A model configurations |
| EV charging | Type 2, 11 kW or 22 kW options |
| Water | Optional 1 x 1/2 inch tap on compatible models |
| Electricity metering | MID-approved meter per controlled outlet |
| Activation | QR Scan and Go through the Emiko Customer App |
| Connectivity | Direct GSM connection to Emiko, with local offline operation |
| Materials | AISI 316 stainless steel; SS304 and marine finishes available by configuration |
Planning
Plan the right installation
Start with the services your marina needs. We help confirm the configuration for each location.
Choose your services
Record the required number of outlets, voltage, current, water service and any EV charging point at each location. The published range covers 2 to 8 CEE outlets, but the available combination depends on the selected supply and model.
Choose your format
Use a new freestanding or wall-mounted unit where the existing enclosure is unsuitable. Where the cabinet, protection and wiring can be retained, the Constructum kit can add metering, switching and Emiko communication without replacing the complete pedestal.
Confirm your specification
Dimensions, weight, IP and IK ratings, water flow and price are not universal published values. They belong in the project quotation for the selected configuration.
Gallery
Explore Marinella NEO
Illustrative views of the pedestal, installation formats and matching series products.
Good to know
Your questions about Marinella NEO
Practical answers for choosing, using and upgrading your service pedestals.
What is Marinella NEO?
Marinella NEO is a connected power and water pedestal for marinas and related sites. It combines local outlet control, MID-approved electricity metering, QR activation and communication with the Emiko platform.
How many power outlets can a Marinella NEO have?
The documented freestanding range covers 2 to 8 CEE outlets, depending on the selected supply and model. Options include 230 V and 400 V outlets at 16 A, 32 A and 63 A. Confirm the exact combination in the project specification.
Does Marinella NEO work without an internet connection?
The local controller continues the configured service and stores consumption records during a network interruption. Records synchronize with Emiko when the connection returns.
Do I need RF communication, a central controller or payment terminals?
The connected pedestal uses a direct GSM connection to the Emiko platform, so no RF mesh or central site controller is required. Customers follow the configured online payment flow, without a payment terminal or physical access card at the pedestal.
Can I upgrade my existing pedestals to Marinella NEO?
The NEO Installation Kit can add Emiko control, MID-approved electricity metering and controlled CEE outlets to a compatible existing pedestal. The cabinet, electrical protection and wiring are assessed before reuse, and the payment workflow is configured for your installation.
What is the difference between Marinella Basic and Marinella NEO?
Marinella Basic provides manual service activation without metering or digital billing. Marinella NEO adds digital activation, electricity metering and management through the Emiko platform, with water metering on compatible configurations.
How do customers pay for electricity at a Marinella NEO pedestal?
The customer scans the QR code for the selected outlet and completes the configured online flow in the Emiko Customer App. Card and MobilePay processing depend on the operator's payment agreement. No payment terminal is required on the pedestal.
Which environmental ratings apply to Marinella NEO?
The published material options include AISI 316 stainless steel, SS304 and marine finishes. A universal IP or IK rating is not published for the complete range, so the enclosure and environmental specification must be confirmed for the selected model.
How does Marinella NEO fit into the wider series?
Marinella NEO provides controlled power and optional water. Marinella NEO Light adds walkway lighting, while LightBin combines lighting and waste collection. The freestanding products share a coordinated stainless steel design.
How do I choose between the stand, WallBox and retrofit kit?
Use the freestanding stand for a new marina service point, with optional water on compatible models. WallBox provides metered power where wall mounting suits the site. The Constructum retrofit kit upgrades a compatible existing pedestal after its enclosure, protection and wiring have been assessed. For several vessels sharing a canopy style service point, compare MarinePro.
Have a question about your project?
Talk to our teamThe wider family
Complete the marina with matching products
Add walkway lighting and waste collection alongside the connected power and water pedestals.
Let’s talk about your project
Plan your Marinella NEO installation
Tell us about the site, the services required at each location and the equipment already in place. We will help select the format, outlet configuration and operating setup.
