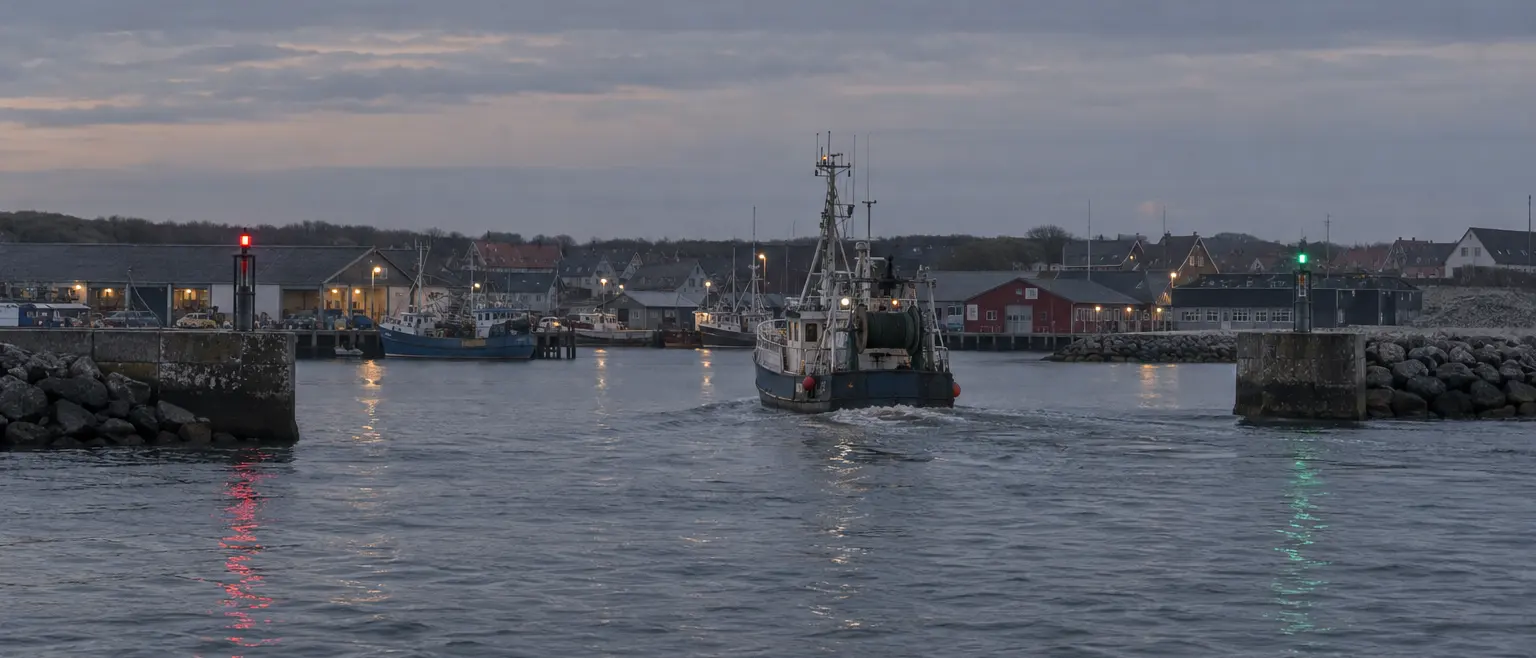

Harbour entrance light
Entrance lights identify pier heads and breakwaters with the colours and characters in the marking plan.
Commissioning verifies the status, alarms and controls supported by each connected instrument.
The components
Equipment
and interfaces
5 components with specified functions.
The labels identify their Emiko integration.
- 01Structure
Lattice masts
GMR lattice mast, 2 to 24 m
Supports the entrance lantern on a designed foundation; height, mast top and site loading are specified.
Product page - 02Monitored through NaviGuard
LED marine lanterns
Tideland Nova-65 with Halo2
Provides externally powered marking; the Nova-65 and Halo2 profile connects through the included NaviGuard.
Product page - 03Monitored through NaviGuard
LED marine lanterns
MSM MCL 360 with serial interface
Provides solar-powered marking; the specified MCL360 profile reports through the included NaviGuard controller.
Product page - 04Full Emiko integration
PowerGuard
PowerGuard supply
Supplies the calculated load from battery and optional solar charging; reports its own status and alarms to Emiko.
Product page - 05Full Emiko integration
NaviGuard
NaviGuard controller
Connects the specified serial profile or PowerMonitor current sensing to Emiko.
Product page
How it works
From the plan to the
commissioned installation
Each entrance light is specified separately. The marking plan and site conditions determine the equipment.
- 01
Confirm marking
The marking plan records each position, colour, flash character and required nominal range.
- 02
Assess mounting
The site assessment establishes mounting height, structural condition and access for maintenance.
- 03
Select lanterns
Select one lantern per position; PowerGuard for Nova-65, or verify MCL 360 solar autonomy and controller power.
- 04
Install lights
The lights are mounted and programmed; synchronisation is checked where specified and supported.
- 05
Test monitoring
Commissioning verifies light operation and the Emiko status and alarm functions included in the specification.
Where it is used
Harbour entrance installation sites
Commercial harbours, fishing ports and marinas installing or replacing entrance lights.
- 01
A pier head with or without mains supply
- 02
A breakwater with a cable supply and a defined backup requirement
- 03
A marina entrance, even with significant background lighting
Planning
Delivery scope
and equipment options
Delivered by Vikingegaarden
- Equipment specification from the marking plan, site data and operating requirements
- Component supply with the agreed manufacturer documentation
- Installation and commissioning, or technical support for the appointed contractor
- Emiko configuration and acceptance checks for supported equipment interfaces
- Service scope, inspection requirements and spare parts confirmed in the quotation
Good to know
Before the
quotation
How is the lantern selected?
The assessment uses nominal range, colour, divergence, background lighting and power availability. Nova-65 requires an external supply; MCL 360 includes solar modules and a battery. Nova-65 range is on request by configuration.
Can the entrance lights be synchronised?
GPS synchronisation can be included where supported by the selected lanterns. The specified flash characters and timing are verified during commissioning.
What is required for a quotation?
The enquiry requires the marking plan, pier-head coordinates, nominal ranges, mounting heights, supply details and required autonomy. Photographs or drawings should show the existing structures and service access.
Plan this solution
Project quotation
The specification defines the equipment, installation scope and price.
The enquiry requires a chart, positions, marking requirements, mounting details, available power and required autonomy.
